The SmartMeth™ control system is a fully automated nitrogen methanol mixing system for heat-treating furnace atmosphere production. The SmartMeth™ utilizes the latest in precision differential pressure flow measurement and touchscreen controller design. This first-of-its-kind system with built-in flowrate calculation automatically sets the nitrogen and methanol flowrates based on the desired %CO furnace concentration.
- Automatic flow setpoint calculation – calculates the required nitrogen and methanol flowrates to maintain a desired %CO at the required volume
- Customizable recipe software
- Optional integrated carbon and temperature control
- Automatic atmosphere recovery provides additional synthetic gas flow on demand when introducing a new load into the furnace
- Integrated paperless chart recorder stores furnace temperature, %carbon, and synthetic gas flow furnace details
- Ethernet communications (Modbus RTU)
- Electronic process flow meters
- Integrated nitrogen purge
- Precision control valves
- Integrated atmosphere recovery

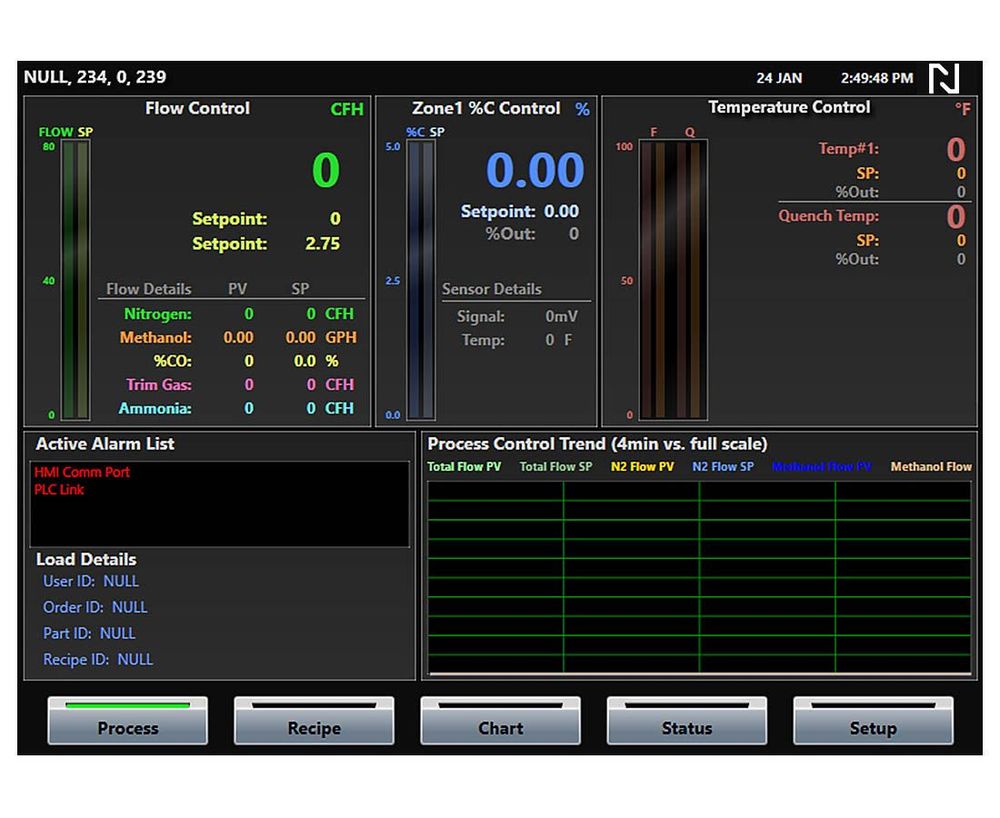

- Full-color touchscreen interface
